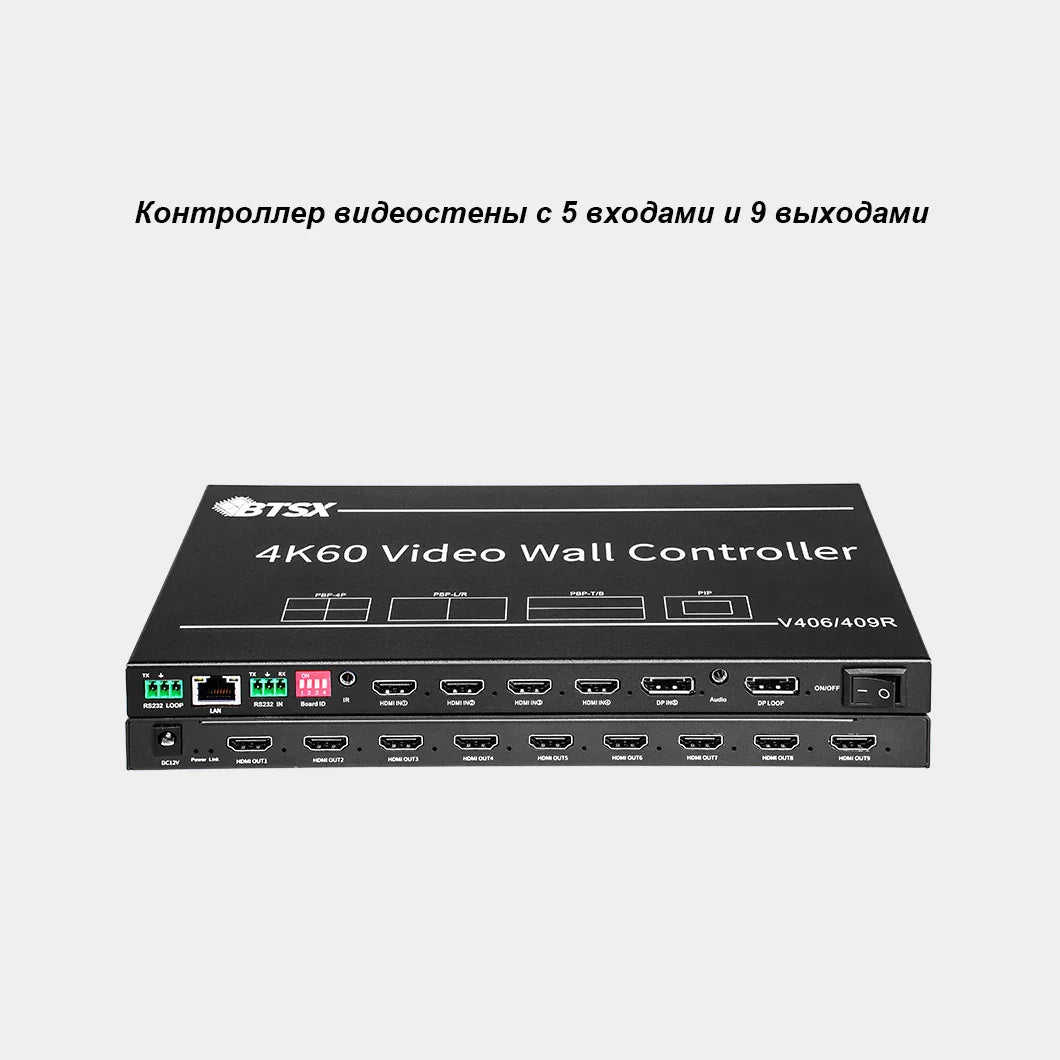

BIT-VWC-406R/409R 4K60 Video Wall Controller: 5 Inputs, 9 Outputs

24.245,27 руб

Распродажа Продано

Request for commercial offer

The prices for all our products are sample prices per unit. If you wish to receive special conditions, click the "Contact Us" button in the bottom right corner to get an up-to-date commercial offer. You can also click here to leave your WhatsApp or email — we will contact you shortly!

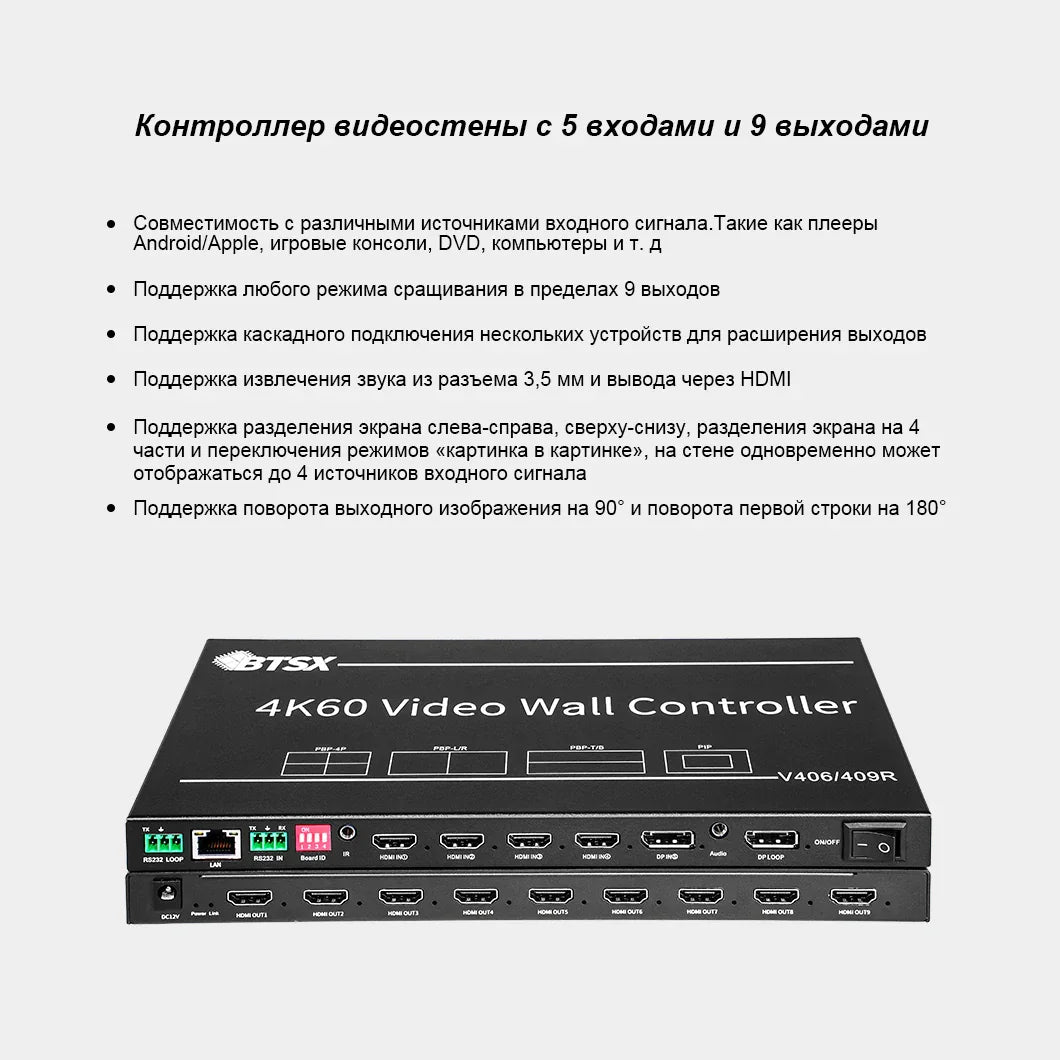

Supports 4 HDMI inputs (1×4K@60Hz, 3×4K@30Hz), 1 DP input (4K@60Hz), 9 HDMI outputs (1080p@60Hz) and 1 DP loop.
One device, 5 inputs / 9 outputs (compatible with 1×9) — any combination of splicing modes: horizontal, vertical, zigzag. Supports cascading via loop.
Max. 4 windows per full screen; modes: single screen, PIP, picture-by-picture, four screens. Arbitrary assignment of input sources to windows.
Max. input resolution: 3840×2160@60Hz, backward compatibility.
Max. output per channel: 1920×1080@60Hz (supports custom resolution).
Input: 90° rotation (single screen mode only); output: 180° rotation of the first row (two-row mode only).
No stretching or distortion, clear image. Supports 1×1 mode.
Control: IR remote, RS232, PC. Low power consumption, passive cooling, high reliability.

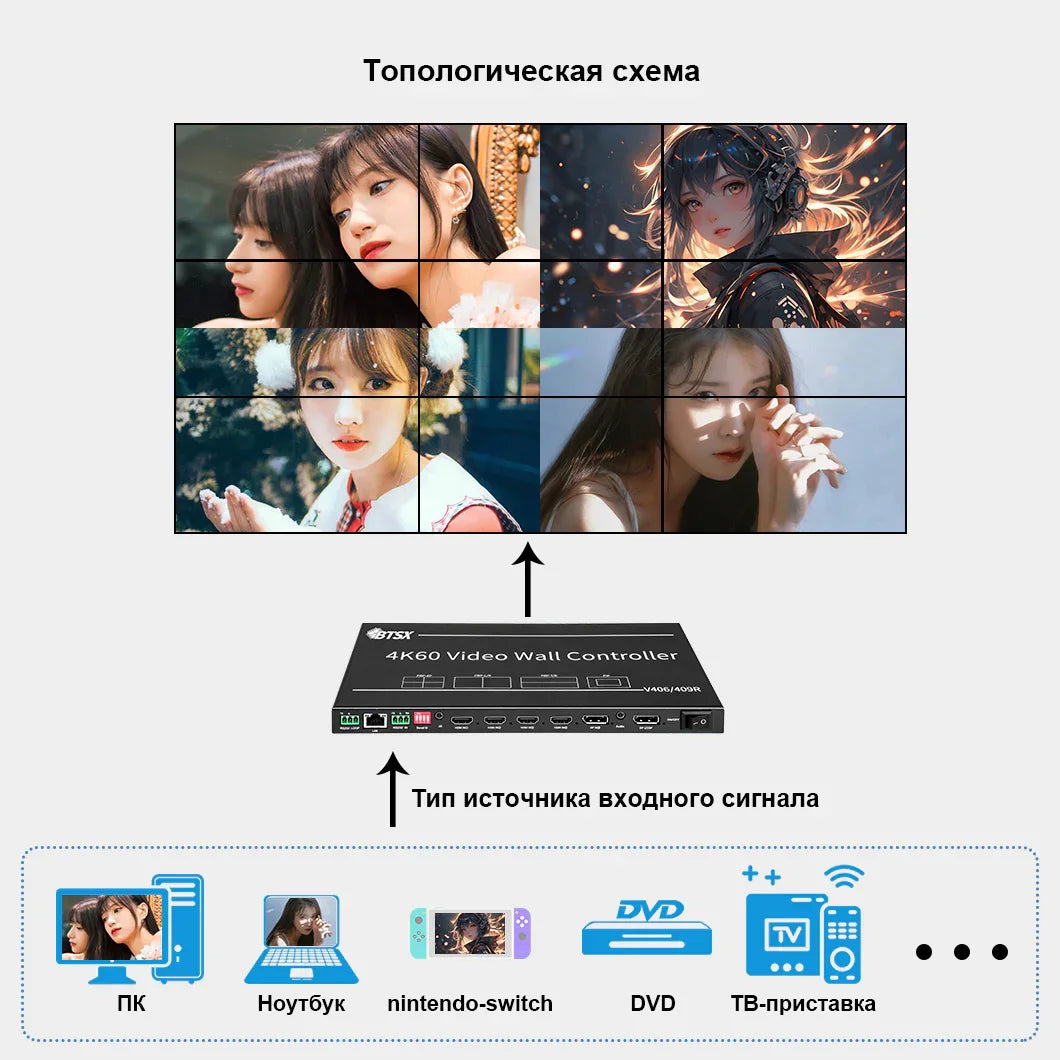

Supports PCs, Android boxes, game consoles, and other devices as signal sources.
FPGA chip with 40nm technology, fully hardware real-time architecture — ultra-fast processing without delays.

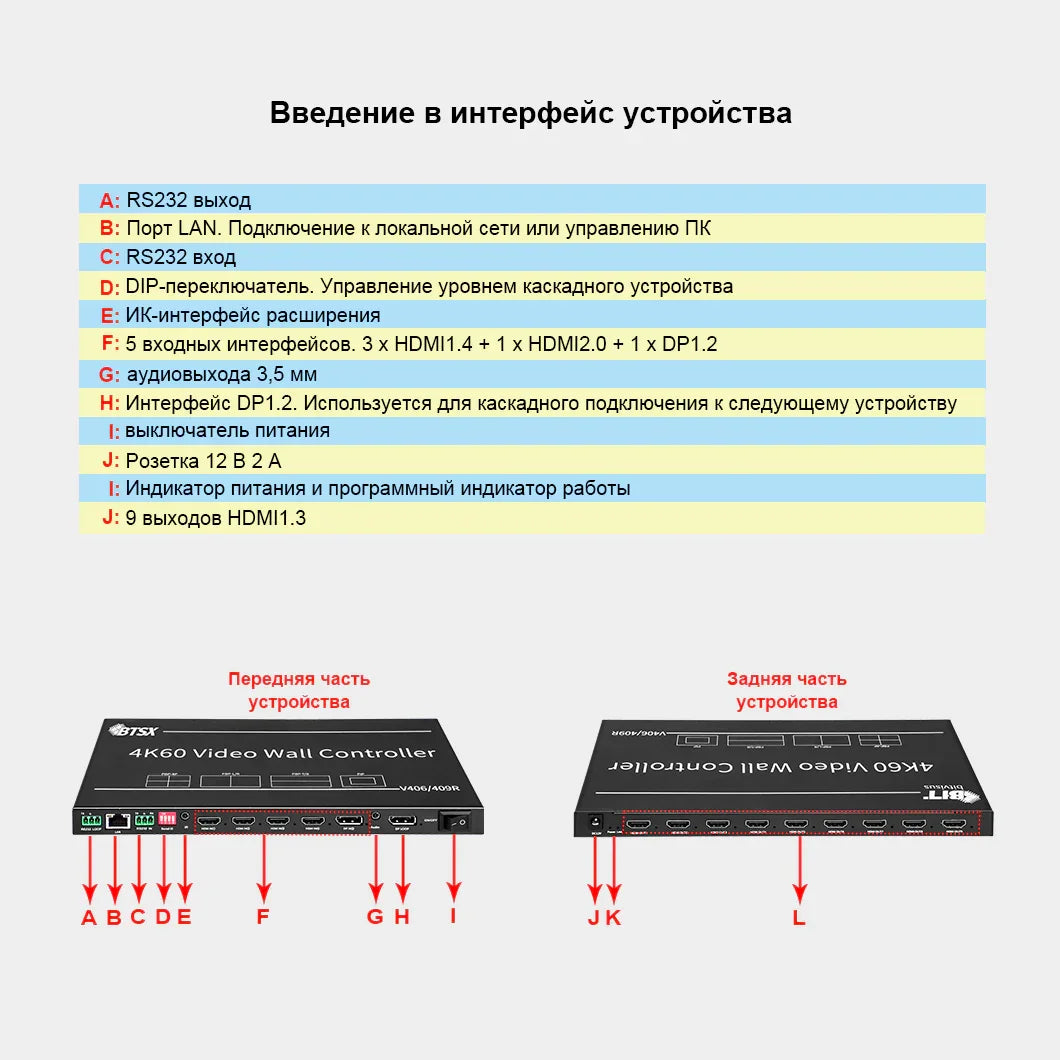

Input Interface

Input Interface	3×HDMI 1.4, 1×HDMI 2.0, 1×DP 1.2 (≤ 5 m), supports HDCP 2.2
Signal Source	PC, Android boxes, game consoles, etc.
Max. Input Pixel Clock Frequency	600 MHz
Default Resolution	3840×2160@30Hz
Color Depth	24 bit, RGB444, YUV420

Output Interface

Output Interface	9×HDMI 1.3 (≤ 15 m), 1×DP 1.2 loop
Max. Output Pixel Clock Frequency	165 MHz
Resolution	1920×1080@60Hz
Color Depth	24 bit, RGB444
Audio Output	Customizable
Audio/Video Separation	Supports 3.5 mm audio jack

Additional Features

Control Method	IR remote, RS232, PC
Splicing Mode	Any variant up to 9 screens
DHCP	Supported
Splicing Effect	Proportional resolution, no distortion
Screen Division	Left/right, top/bottom, 4 parts, PIP; up to 4 signals simultaneously
Power-off Memory	Supported
Parallel Connection	Supported
Cascading	Supported
Output Rotation	Input: 90°; output (first row): 180°
Chip Technology	FPGA 40nm, fully hardware real-time architecture, no delays
Application	Large screen splicing
OEM	Supported

Specifications

Power Supply	DC 12 V, 2 A
Power Consumption	12 W
Storage/Operating Temperature	-10～50°C / 0～50°C

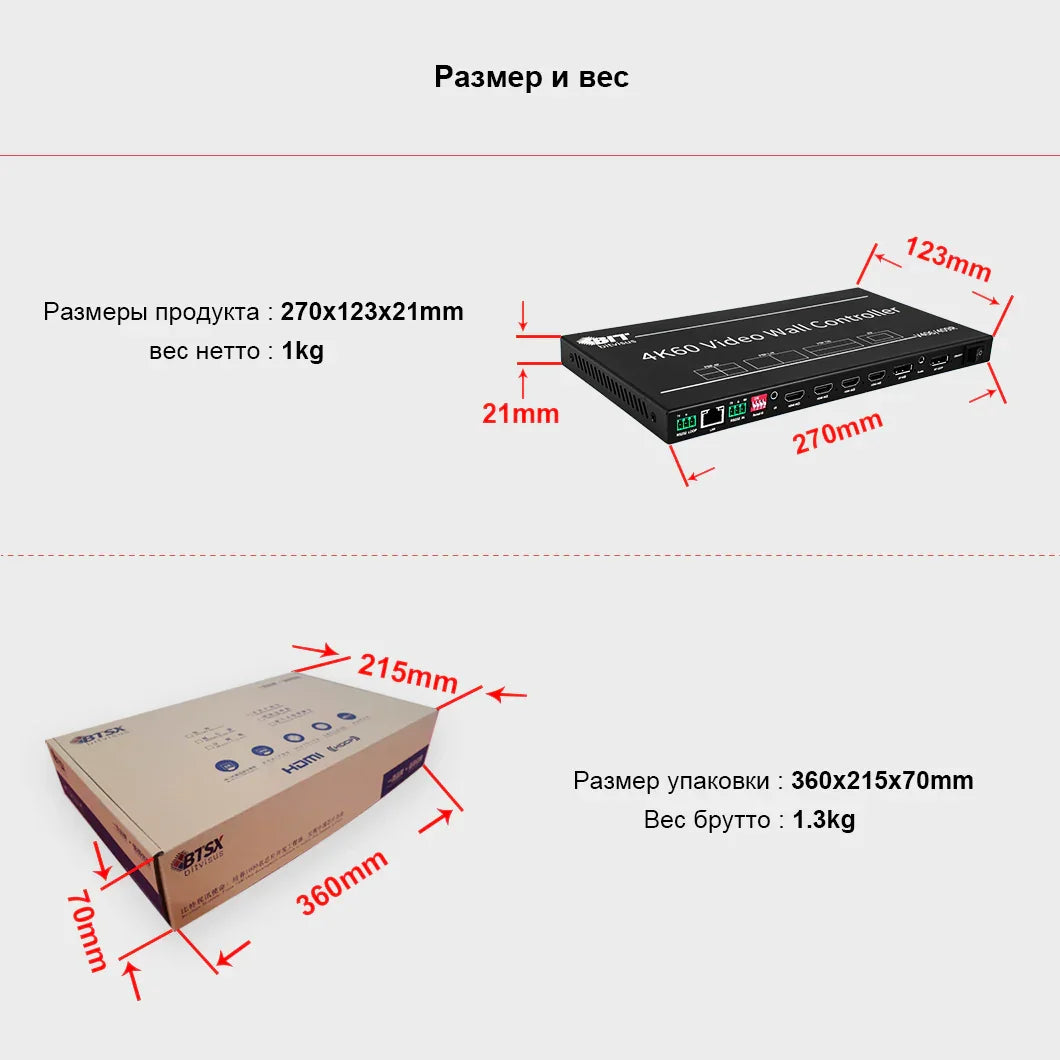

Dimensions	270×122.5×20.5 mm
Weight	1 kg
Package Contents	Device ×1, Power Supply ×1, Remote Control ×1, Certificate ×1, Warranty Card ×1
Warranty Service	1 year warranty
