Video wall splicing solutions for different angles and sizes

Typically, video walls are constructed with M rows and N columns,either horizontally or vertically. However, in some specific scenarios,video walls with artistic designs are required. Conventional video wall processors are inadequate for this purpose. Customizing the input source content to achieve the desired effect is a complex solution, requiring customization every time the content changes,and the cost is exponentially higher.

So, what devices can achieve arbitrary rotation of a single output port and support video walls of varying sizes?

For example, the following effect:

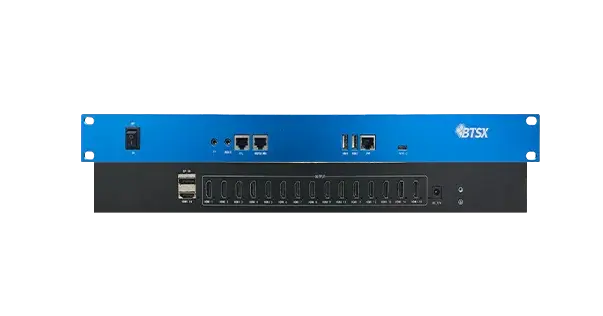

Of course there is. Our Magic Box series of products can achieve splicing of large and small screen video walls at any angle. Let’s take a look at an actual project case.

Screen size and quantity:

The installation method is as follows:

Solution:

Divide the video wall into three sections, use three BIT-VJ-110Pros to create three 1600x900 video walls, and then use the graphics card's Mosaic function to merge them into one large screen.

Final result:

The above are our video wall splicing solutions for different angles and sizes. If you have any questions or project requirements, please leave a comment or contact us (niber.wen@bitvisus.com).
